(New)Diamond Chip Resistor





Reurn List   I want to customize

Can't meet the demand with existing products?


Scroll to the right to view the specifications

A Surface Mount Chip Attenuators

额定功率

衰减值

频率

最大驻波

尺寸(mm)

产品型号

Power Rating

(W)

Attenuation Value

Frequency

(GHz)

VSWR

(Max)

Dimensions

Model



(dB)

W

L

H

I

B

  Click below to view specifications

0.5

2

9

1.30



0.8



1.1

0.38

0.4


  RFR2-0.5CA49001A-J

5 2 9 1.30



1.27



2    0.38 0.4        RFR2-5CA48901A-J
5 3 9 1.30



1.27



2 0.38 0.4
 RFR3-5CA48901A-J

20

1 12 1.25



2.5



2.5 0.25 1.1   RFR1-20CA48301A-J
15 2 3 1.20



4



4 0.6 1
   RFR2-15CA9301C-J
15 3 6.5 1.30



4



4 0.6 1
 RFR3-15CA9301C-J
15 2 2 1.20



6



3 1 0.5
  RFR2-15CA66801A-J
30 3 6.5 1.30



6



6 1 1

  RFR3-30CA1108B-J

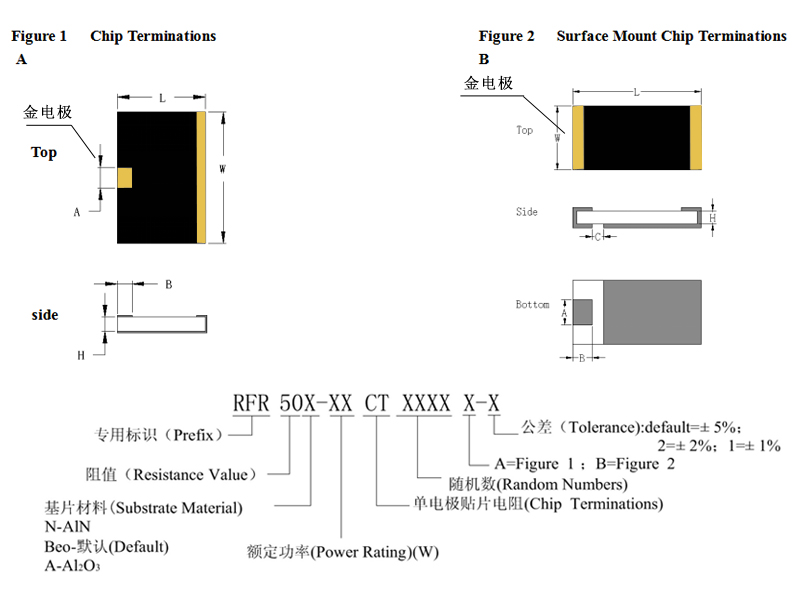

Suggested mounting procedures:

1.Solder part or leads in place with controlled

temperature iron (260℃).

2.Drill thermal vias through PCB and fill with solder.
